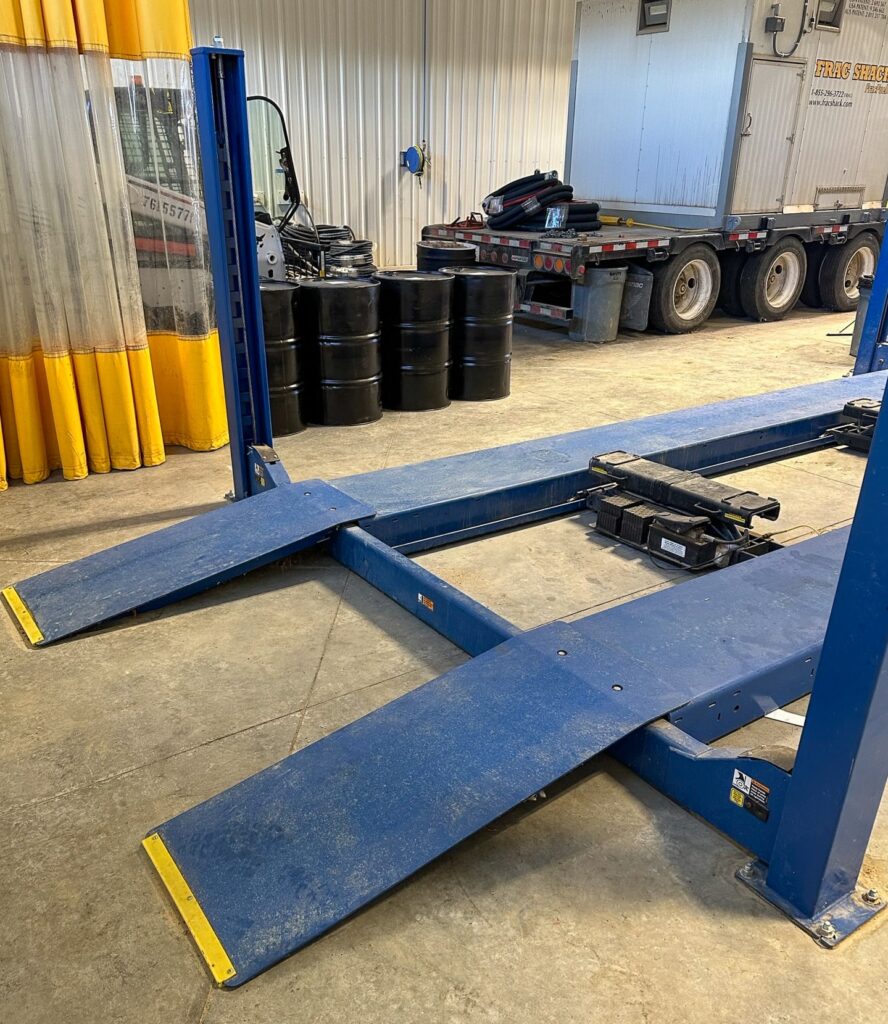

Rotary Four Post Lift

Back to Equipments Sale List

The 4-post Rotary lift boasts an impressive 18,000 lb. lift capacity, and can easily accommodate a variety of vehicles, perfect for shops servicing all types. These lifts easily handle cars, vans, trucks—even light and medium-duty commercial vehicles. If you service a wide variety of vehicles, Rotary four-post auto lifts are the right choice for maximum productivity. These features make this lift incredibly convenient and easy to use, saving valuable time and effort.

Key Features:

  •  Cylinder located under the runway
  •  Dual function Sentinel Lock System
  •  Air Filter/Regulator/Lubricator
  •  Adjustable latch bars
  •  Single piece non-welded runway with tracks for rolling jacks
  •  ALI Gold Certified (SM18LO-X)



Technical Specifications:

Rotary Lift: Model SM18N000
Lift Capacity

18,000 lbs.

Length Overall

22' 11 3/16" 25' 11 3/16"

Width Overall

11' 5 3/4"

Inside of Columns

121 1/2"

Between Columns

212" 248"

Height of Columns

6' 5 3/4"

Height of Runways

7 1/2"

Width of Runways

22"

Width Between Runways (max)

46"

Maximum Wheelbase

194" 230"

Rise Height

68"

Motor

2 HP

Voltage (Single Phase)

208 - 230v

Time of Full Rise

100 Seconds

Min Bay Size

16'x27' 16'x30'




*Inquire to discuss pricing and transportation options*

Manufacturer Website: SM18 | Rotary Solutions

Purchased

Rotary Four Post Lift

$
13,000
Make and Model:
SM18N000
Location:

Frederick, CO

Condition:
Used - Like New
Inquire or Make an Offer
